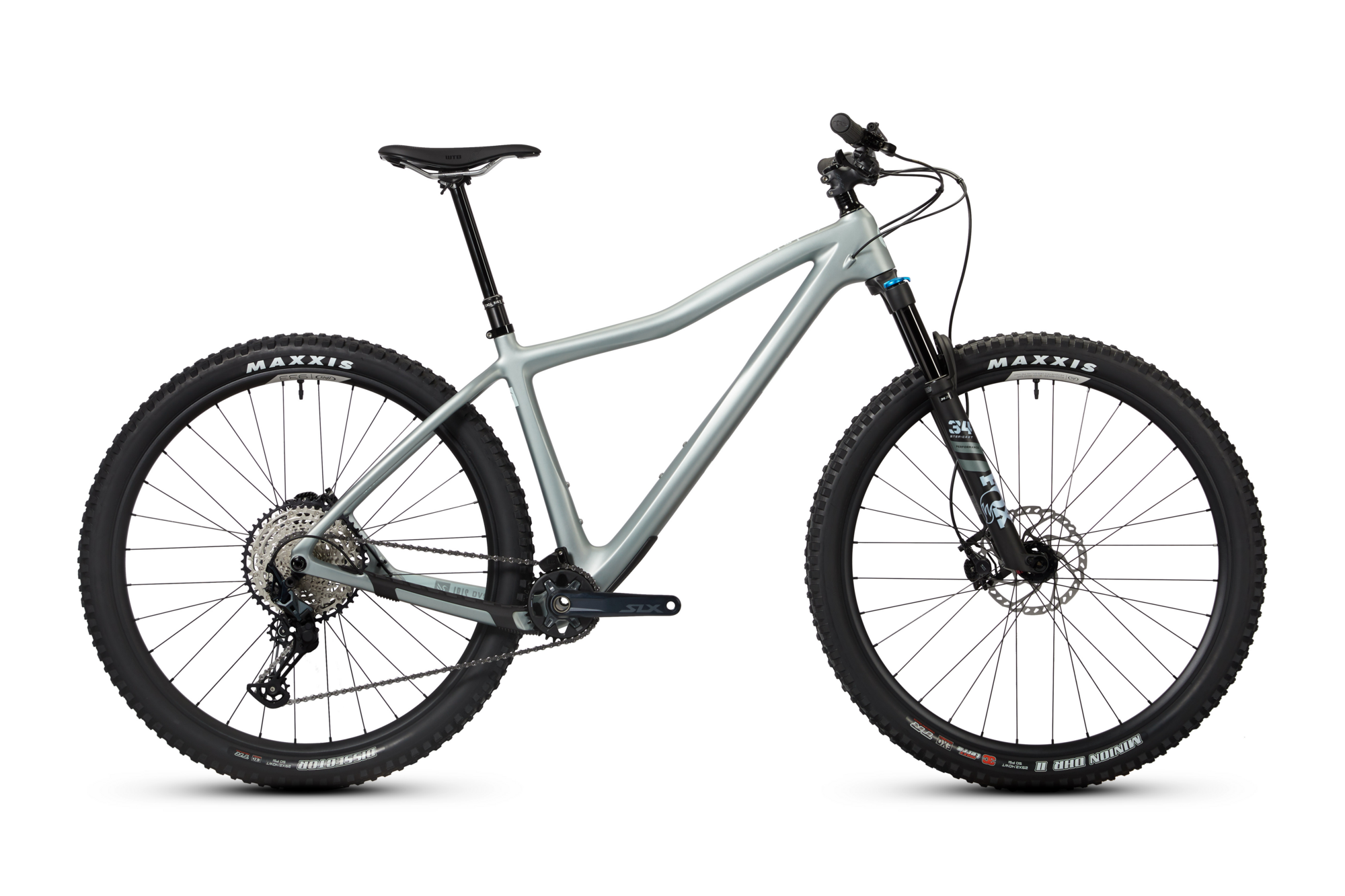

Ibis DV9 Deore
This item is currently not available.
Details
The DV9 is back! A do-it-all carbon fiber hardtail designed to take you from the trailhead to the starting line, with a session at the pump track in between. Lighter weight, with up to date geometry, and engineered to the same exacting standards as the rest of our line, it packs a ton of performance in a more accessible price.
| Frame Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seat Tube (in.) | 14" | 16" | 18" | 20" |
| Effective Top Tube (mm) | 580 | 608 | 640 | 675 |
| Head Tube (mm) | 85 | 95 | 110 | 135 |
| Chainstay (mm) | 425 | 425 | 425 | 425 |
| Seat Tube Angle | 74° | 74.5° | 75° | 76° |
| Saddle Height For Seat Tube Angle (mm) | 650 | 700 | 750 | 820 |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Wheelbase (mm) | 1110 | 1145 | 1186 | 1237 |
| Stack (mm) | 615 | 622 | 635 | 658 |
| Reach (mm) | 404 | 435 | 470 | 511 |
| BB Drop (mm) | 65 | 65 | 65 | 65 |
| BB Height (mm) | 308 | 308 | 308 | 308 |
| Standover (mm) | 693 | 714 | 762 | 776 |
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | Fox Float 34 Performance Series, Step-Cast, Grip, 120mm, 29’, 110x15 |
| Hubs | Ibis Hubs |
| Rims | Ibis 933 Aluminum Rims |
| Stem | Ibis 31.8mm 40mm |
| Chain | KMC X12 Chain |
| Frame | DV9 |
| Tires | Maxxis DHR2 29" x 2.4" Exo TR (front) / Maxxis Dissector 29" x 2.4" Exo TR (rear) |
| Brakes | Shimano Deore M6100, 2 Piston |
| Rotors | Shimano SM-RT66, 180mm |
| Saddle | WTB Silverado Fusion |
| Spokes | Sapim Spokes |
| Wheels | Ibis 933 Aluminum Rims, Ibis Hubs |
| Headset | Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower |
| Crankset | Shimano Deore M6120 |
| Seatpost | KS Rage-i Dropper M: 150mm |
| Shifters | Shimano Deore M6100 |
| Chainrings | 30T Chain Ring |
| Handlebars | Ibis Carbon Handlebars |
| Tape/Grips | Lizard Skin Charger |
| Brake Levers | Shimano Deore M6100 |
| Bottom Bracket | Shimano SM BB52 |
| Rear Derailleur | Shimano Deore M6100, Shadow Plus |
| Front Derailleur | N/A |
| Cassette/Freewheel | Shimano Deore M6100, 10-51T |
* Subject to change without notice.
